Power : 350W
Voltage : 220-240V
Frequency : 50-60Hz
Chuck Capacity : 1.5-13mm
Drill Capacity wood : 20mm
Drill Capacity steel : 13mm
Drill Capacity Plastic : 16mm
Weight : 15.5Kg
Spindle Travel : 50mm
Class of Speed : 5
Speed : 620-2620RPM
Spindle Taper : B16
Swing : 210mm
Distance from Spindle End to the Surface of Table : 220mm
Distance from Spindle End to the Surface of Base : 300mm
Table Size : 160*160
Base Size : 190*290
Column Diameter : 46mm
Height : 580mm
Supplied In : Ronix color box
Includes : Base, Bench vice, Chuck and chuck key, Pulley cover tip and nut, Handle, Working table, Column, Chuck guard

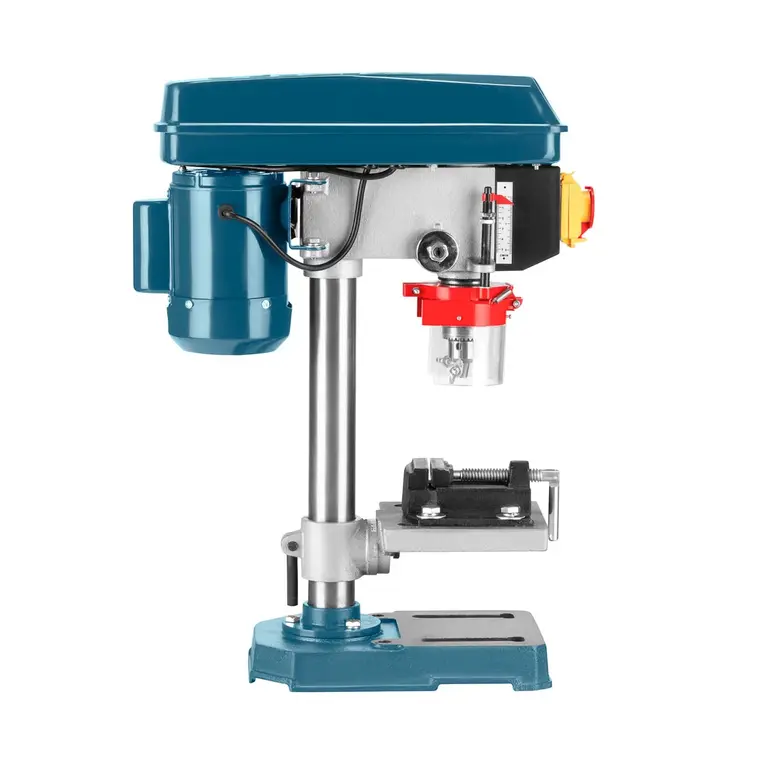

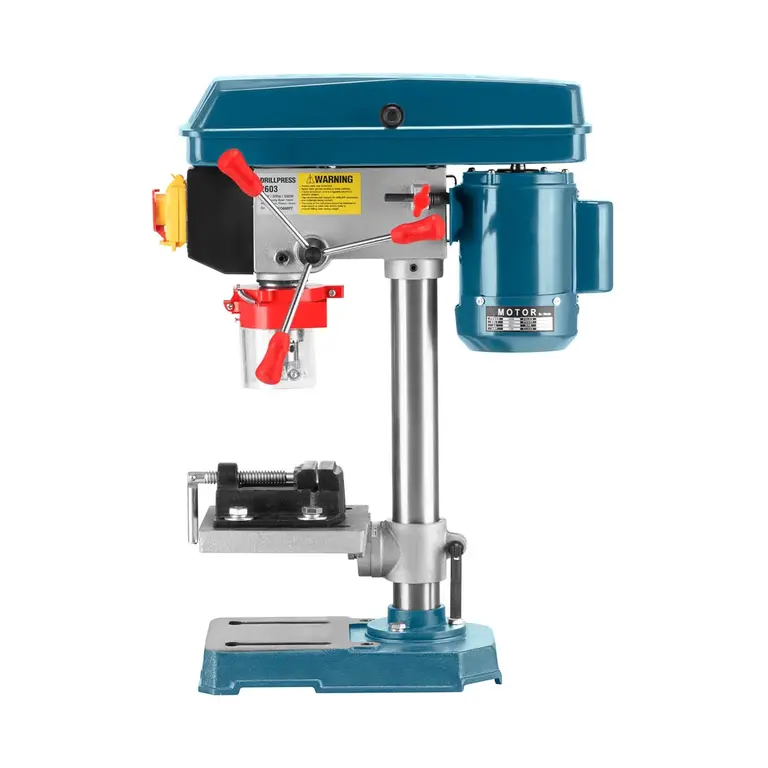

Ronix 2603 drill press is a professional tool for woodworking workshops and industrial uses. With its 5-speed motor function, this drill press gives a different experience to the user.
Ronix 2603 Drill Press: Precise and Professional Drilling!
You need to consider some points before buying a high-quality drill press. In the following, we give you a detailed description of the Ronix 2603 drill press.
Motor and Mechanism:
A 350W motor with a 220-240 voltage and a 50-60Hz frequency powers this high-performance drill press. This powerful motor with 5-speed settings provides optimal performance in various applications, such as wood and metal. The motor can deliver 620-2620 rotations per minute speed range.
Body and Switches:

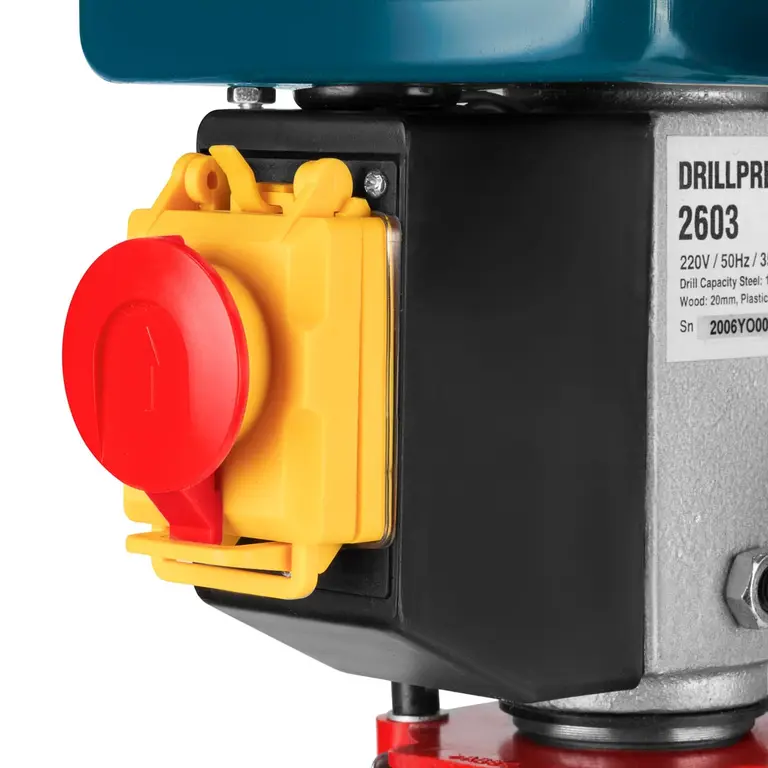

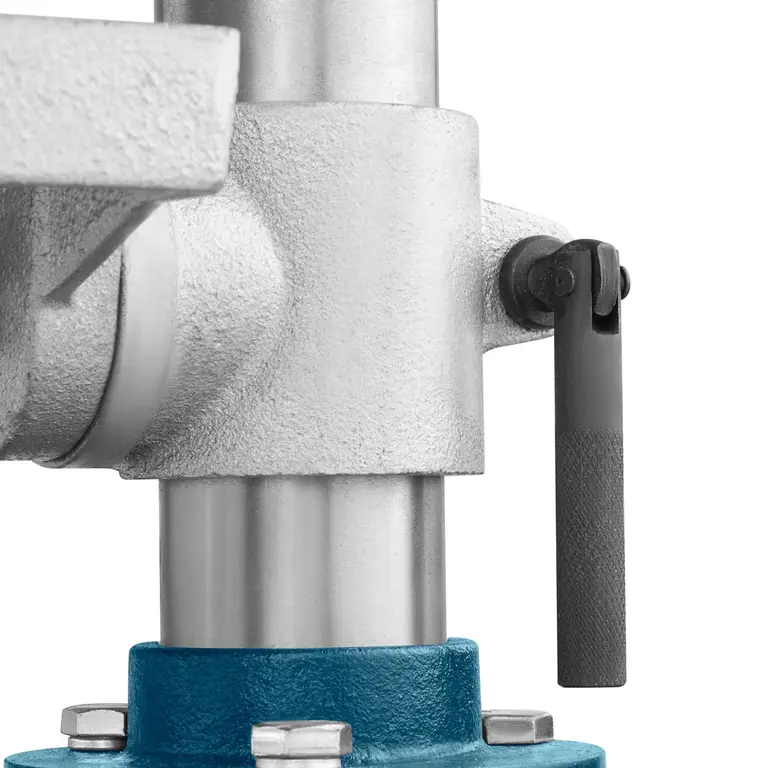

The large, heavy-duty feed handles of the Ronix 2603 drill press help increase leverage and maximum control and comfort. Its adjustable cast iron working table (160*160mm) allows for easy and accurate height adjustment and includes a 0-45° (left & right) tilt ability for angled drilling. Because of its cast aluminum belt pulley, the tool works as efficiently and silently as possible. A front emergency switch can turn off the tool in an emergency. The base size is 290*190mm. The tool features a column to support the table with a diameter of 46mm.

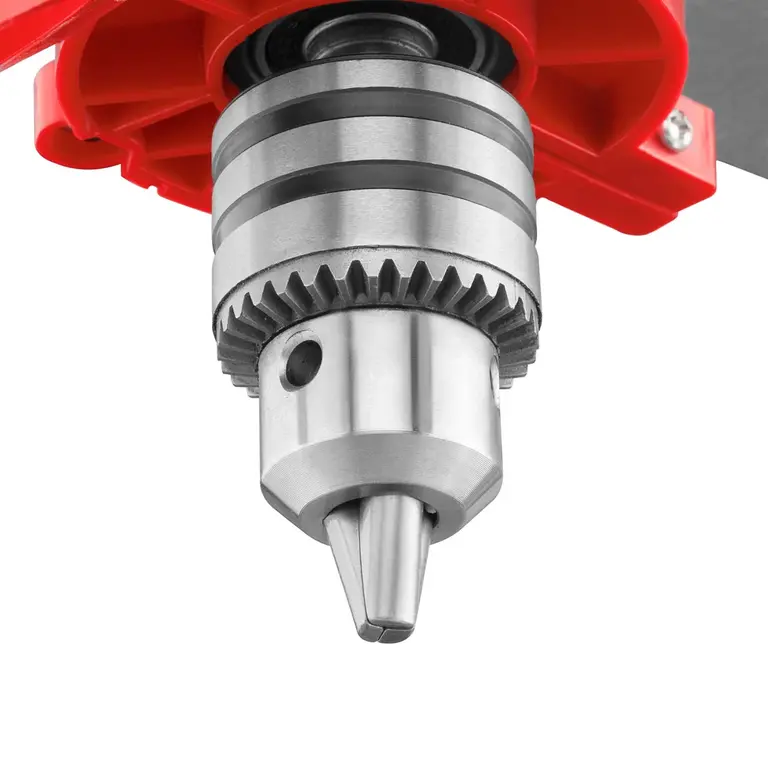

Chuck:
The adjustable keyed chuck capacity on the Ronix 2603 drill press is between 1.5 – 13mm for a greater bit capacity. With this keyed chuck, the drill press has a 20mm drill capacity in wood, a 13mm drill capacity in steel, and a 16mm drill capacity in plastic. The drill is equipped with a chuck guard for more protection and safety.
Spindle:
A spindle holds the drill’s chuck to hold the cutting tools. The spindle travel on the Ronix 2603 is 50mm, and it features 5 classes of speed. Also, the spindle taper is of B16. The distance from the spindle end to the table’s surface is 220mm. The distance from the spindle end to the surface of the base is 300mm.
Accessories and Packaging:

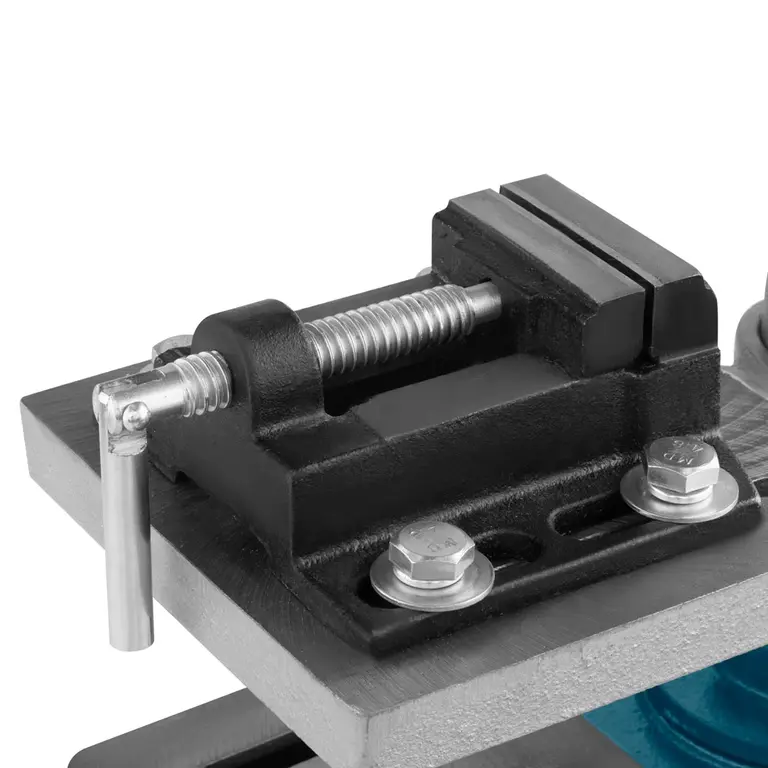

The Ronix 2603 5-speed drill press is supplied in a Ronix color box and includes various pieces, such as a base, a 2.5” bench vice, a chuck and chuck key, a pulley cover tip and nut, a handle, a working table, a column, and a chuck guard.
